3D Human Pose Estimation in Video

Abstract

This project presents a comprehensive comparison between transformer-based and CNN-based architectures for 3D human pose estimation in video. We evaluate two state-of-the-art models—VideoPose3D (a temporal CNN) and PoseFormerV2 (a transformer-based model)—on the Human3.6M dataset using standardized evaluation protocols. Our experiments demonstrate that PoseFormerV2 consistently outperforms VideoPose3D across all metrics, achieving a 3.4% improvement in MPJPE (45.2 mm vs 46.8 mm), 2.5% improvement in P-MPJPE (35.6 mm vs 36.5 mm), and 2.7% improvement in N-MPJPE (43.8 mm vs 45.0 mm). Through both quantitative metrics and qualitative video comparisons, we show that transformer-based architectures provide better global joint understanding and improved stability for 3D pose estimation. Our findings highlight the importance of 2D keypoint detection quality and demonstrate that transformer models represent a promising direction for robust, generalizable 3D pose estimation systems.

Problem Statement

The Problem: Estimating 3D human pose from video

• Input: Sequence of RGB frames
• Goal: Recover 3D positions of human joints (head, shoulders, elbows, hips, knees, ankles)

Challenges:

• 2D image loses depth information
• Occlusions or clutter can hide body parts
• Movements can be fast or complex
• Models must generalize to new scenes and people

Our Aim: Compare transformer-based models with classical CNN models for 3D pose estimation in video.

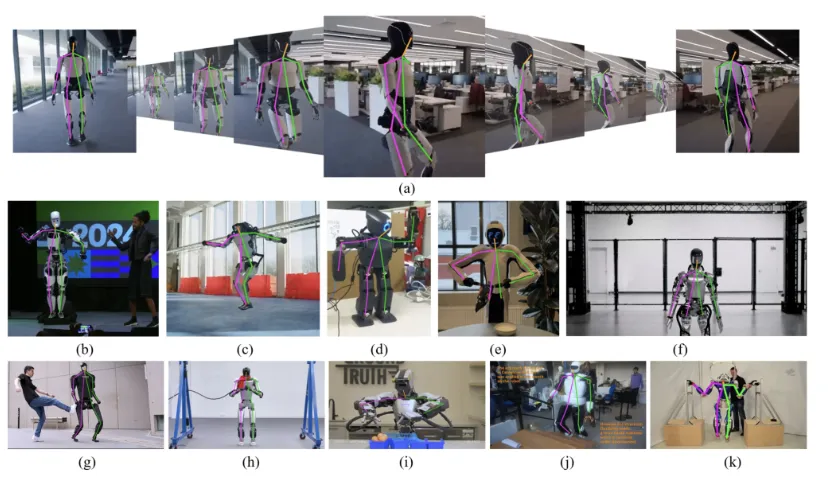

Examples of challenging human pose estimation scenarios.

Why is it Important

Real-world Applications:

• Robotics – for safe human–robot interaction
• AR/VR – for tracking body movement in virtual environments
• Healthcare & rehab – analyzing patient motion
• Sports analytics – performance tracking and injury prevention

2D keypoints from sports footage being uplifted to 3D — crucial for real-world applications like sports analytics.

Current Limitations:

Systems work well in clean conditions but struggle with:

• Complex motion sequences
• Depth uncertainty in single-camera video
• Hidden objects and clutter

Impact: Better 3D pose estimation increases safety, robustness, and usability across many practical applications.

Our Method

Models Compared

We implemented and compared two architectures using identical 2D keypoints as input:

1. VideoPose3D (baseline CNN-based)
   • Temporal fully connected network
   • Reference: Pavllo, D., et al. (2019). "3D human pose estimation in video with temporal convolutions and semi-supervised training"
2. PoseFormerV2 (transformer-based)
   • Uses self-attention to model global spatio-temporal relationships
   • Frequency-domain representations
   • Reference: Zhao, Q., et al. (2023). "PoseFormerV2: Exploring frequency domain for efficient and robust 3D human pose estimation"

Comparison Methods

We compare them using two methods:

1. Metrics using Human 3.6M dataset
   • Quantitative evaluation on standardized test set
2. Visual comparison using random videos:
   • Step a): 2D Video frame to 2D keypoints using DetectronV2
   • Step b): 2D keypoints uplifted to 3D coordinates

About the Dataset and Metrics

Human3.6M Dataset

• Contains 3.6 million video frames for 11 subjects
• Each subject performs 15 actions recorded using four cameras
• We adopt a 17-joint skeleton
• Train subjects: S1, S5, S6, S7, S8
• Test subjects: S9, S11

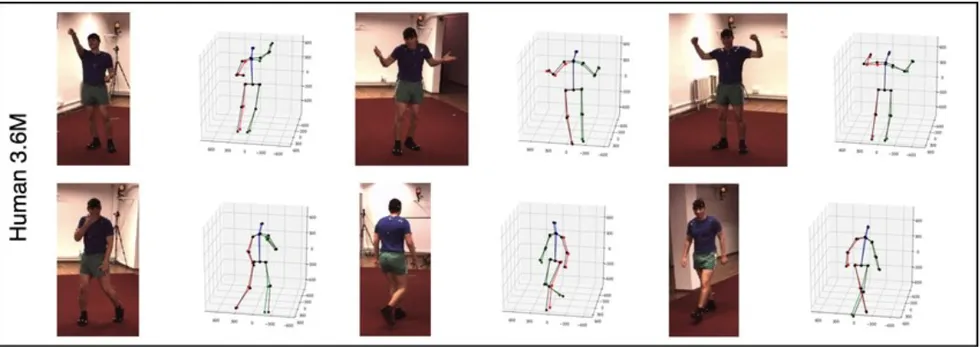

Human3.6M dataset samples with corresponding 3D ground-truth poses.

Evaluation Protocols

Three evaluation protocols:

1. Protocol #1 (MPJPE): Mean per-joint position error in millimeters
   • Mean Euclidean distance between predicted joint positions and ground-truth joint positions
2. Protocol #2 (P-MPJPE): Procrustes-aligned Mean Per-Joint Position Error
   • Error after alignment with the ground truth in translation, rotation, and scale
3. Protocol #3 (N-MPJPE): Normalized Mean Per-Joint Position Error
   • Aligns predicted poses with the ground-truth only in scale
   • Used for semi-supervised experiments

Results and Comparison

Quantitative Results

Key Points:

• All metrics measured in millimeters (mm)
• Lower is better
• PoseFormerV2 outperforms VideoPose3D across all metrics

Error Metrics Explained:

• MPJPE (Protocol #1): Raw 3D position error
• P-MPJPE (Protocol #2): Error after pose alignment
• N-MPJPE (Protocol #3): Error after scale normalization

Qualitative Results (Sample Videos)

Video Demonstrations:

• Dancing: Watch Video
• Tennis: Watch Video
• Running: Watch Video

Output 3D Coordinates Comparison:

Discussion

What We Learned

• Transformers significantly outperform classical temporal models for 3D pose estimation
• Data quality (2D keypoints) heavily influences 3D accuracy
  • Improvement from MediaPipe to Detectron
• PoseFormer improves global joint understanding and adds stability when compared to the CNN-based VideoPose3D

Problems Encountered

2D Keypoint Detection Quality:

• Initial use of MediaPipe resulted in lower accuracy
• Switched to DetectronV2 for better 2D keypoint quality
• This significantly improved 3D pose estimation results

Coordinate System Alignment:

• Different models may output in different coordinate systems
• Required careful alignment for fair comparison

Temporal Synchronization:

• Ensuring frame-by-frame consistency in video comparisons

Future Directions

• Merge RGB images with depth info using LIDAR
• Extend to multi-person pose estimation
• Move toward real-time, on-device inference

Conclusion

Overall, transformer-based architectures represent a strong next step for building robust and more generalizable 3D pose estimation systems.

Resources & References

Code Repository

• GitHub: https://github.com/gnsh-a/repo566
• Key scripts:
  • eval_videopose3d.sh - VideoPose3D evaluation
  • eval_poseformerv2.sh - PoseFormerV2 evaluation
  • compare_metrics.py - Metrics comparison
  • compare_video_models.py - Video comparison tool

Datasets

• Human3.6M: [Dataset reference/link]

Model References

VideoPose3D:

• Pavllo, D., Feichtenhofer, C., Grangier, D., & Auli, M. (2019). "3D human pose estimation in video with temporal convolutions and semi-supervised training"
• GitHub: https://github.com/facebookresearch/VideoPose3D

PoseFormerV2:

• Zhao, Q., Zheng, C., Liu, M., Wang, P., & Chen, C. (2023). "PoseFormerV2: Exploring frequency domain for efficient and robust 3D human pose estimation"
• GitHub: https://github.com/QitaoZhao/PoseFormerV2
